ATLANTE
Floodlight with built-in LED.
Painted die-cast aluminium body.
Tempered trasparent glass.
Classe II.
Built-in driver.
Datasheet
41183_en.pdf
41170_en.pdf
41171_en.pdf
41172_en.pdf
LDT files
download

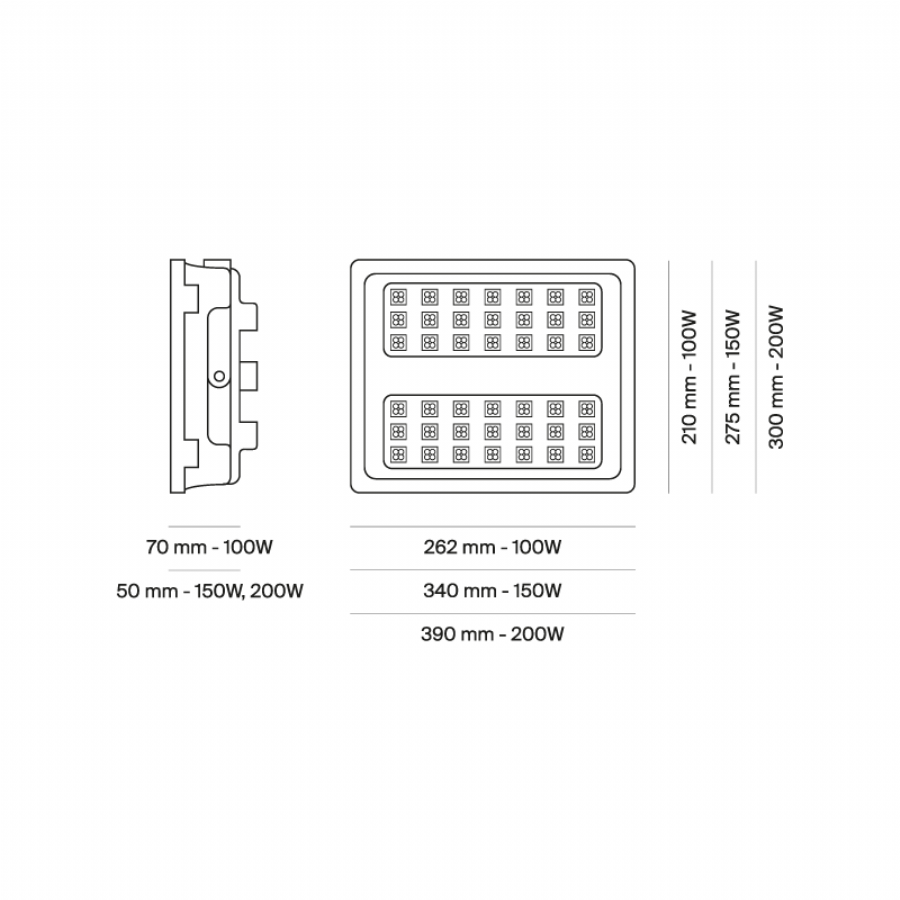

| code | info | W | colour temperature | volt | lumen | CRI | PF | IP protection | dimensions | weight | packing |
| 41183 | BRIDGELLUX | 50 | 4000 °K | 220-240V 50/60Hz | 4700 | >80 | >0,9 | IP66 | 191x141x70 mm | 1,0 Kg | 12 |
| 41170 | BRIDGELLUX | 100 | 4000 °K | 220-240V 50/60Hz | 9500 | >80 | >0,9 | IP66 | 262x210x70 mm | 2,4 Kg | 6 |
| 41171 | BRIDGELLUX | 150 | 4000 °K | 220-240V 50/60Hz | 14250 | >80 | >0,9 | IP66 | 340x275x50 mm | 4,5 Kg | 4 |
| 41172 | BRIDGELLUX | 200 | 4000 °K | 220-240V 50/60Hz | 19000 | >80 | >0,9 | IP66 | 390x300x50 mm | 5,7 Kg | 4 |
